Erlang network stack

This package implements the Erlang network stack, including the DIST protocol, ETF data format, EPMD registrar functionality, and the Handshake mechanism.

It is compatible with OTP-23 to OTP-29. The source code is available on the project's GitHub page at https://github.com/ergo-services/proto in the erlang23 directory.

The source code is distributed under the MIT License, like the rest of the framework, and is free to use in commercial projects without restrictions.

EPMD

The epmd package implements the gen.Registrar interface. To create it, use the epmd.Create function with the following options:

• Port: Registrar port number (default: 4369).

• EnableRouteTLS: Enables TLS for all gen.Route responses on resolve requests. This is necessary if the Erlang cluster uses TLS.

• DisableServer: Disables the internal server mode, useful when using the Erlang-provided epmd service.

To use this package, include ergo.services/proto/erlang23/epmd.

Handshake

The handshake package implements the gen.NetworkHandshake interface. To create a handshake instance, use the handshake.Create function with the following options:

• Flags: Defines the supported functionality of the Erlang network stack. The default is set by handshake.DefaultFlags().

• UseVersion5: Enables handshake version 5 mode (default is version 6).

To use this package, include ergo.services/proto/erlang23/handshake.

DIST protocol

The ergo.services/proto/erlang23/dist package implements the gen.NetworkProto and gen.Connection interfaces. To create it, use the dist.Create function and provide dist.Options as an argument, where you can specify the FragmentationUnit size in bytes. This value is used for fragmenting large messages. 65000 bytes is both the default and the floor: a smaller value is silently raised to it, with no error and no log line, so asking for 8000 gets you 65000.

The Erlang DIST proto deliberately does not implement gen.TypeRegistry, because the Erlang external term format (ETF) carries primitives, atoms, lists, tuples, and binaries directly on the wire without a separate type-registration step. Use etf.RegisterTypeOf (described below) to teach the Erlang decoder how to map incoming tuples or atoms to your Go types.

Note what that means for node.Network().RegisterType and for ApplicationSpec.Network.RegisterTypes: they do not reach the Erlang wire, and they do not tell you so. A node always keeps the native proto registered alongside whatever you configured, so those calls find a TypeRegistry to write into and return nil even on a node that speaks nothing but DIST. An application whose spec lists its wire types therefore loads without complaint, and the types are in the EDF registry that this node never uses. For the Erlang side, etf.RegisterTypeOf is the only registration that counts.

To use this package, include ergo.services/proto/erlang23/dist.

ETF data format

Erlang uses the ETF (Erlang Term Format) for encoding messages transmitted over the network. Due to differences in data types between Golang and Erlang, decoding received messages involves converting the data to their corresponding Golang types:

• number -> int64

• float number -> float64

• big number -> big.Int from math/big, or to int64/uint64

• map -> etf.Map (map[any]any)

• binary -> []byte

• list -> etf.List ([]any), or string - see below

• tuple -> etf.Tuple ([]any) or a registered struct type

• atom -> gen.Atom

• pid -> gen.PID

• ref -> gen.Ref

• ref (alias) -> gen.Alias

• atom = true/false -> bool

These are named types, and a type assertion is exact: a map arrives as etf.Map, so .(map[any]any) fails on it even though etf.Map is defined as map[any]any. The same goes for numbers - every Erlang integer is an int64, so .(int) never matches. Neither mistake produces an error you can see; the assertion just reports false and your code takes whatever branch it has for bad input.

Erlang has no string type, and that leaks into Go. A list of integers between 0 and 255 is sent as STRING_EXT and arrives as a Go string; any other list arrives as an etf.List. So "hello" from an Erlang shell is a Go string, and so is [1,2,3] - it reaches you as "\x01\x02\x03". Meanwhile [1000,2000] is an etf.List{1000, 2000}, because those values do not fit a byte. Nothing announces which of the two you are getting.

etf.TermToString exists for exactly this: it accepts string, etf.List, []byte and gen.Atom and returns the text, so a callback that wants a string can stop caring which shape arrived. When you control both sides, sending a binary (<<"hello">>) instead of a charlist removes the ambiguity altogether: it always arrives as []byte.

When encoding data in the Erlang ETF format:

• map -> map #{}

• slice/array -> list []

• struct -> map with field names as keys (considering etf: tags on struct fields)

• registered type of struct -> tuple with the first element being the registered struct name, followed by field values in order.

• []byte -> binary

• int*/float*/big.Int -> number

• string -> a charlist (STRING_EXT), which is what Erlang calls a string. Above 65535 bytes the encoder refuses it with etf.ErrStringTooLong

• etf.String -> binary, for when you want <<"...">> on the Erlang side

• etf.Charlist -> a charlist encoded from []rune, so text outside Latin-1 survives

• gen.Atom -> atom

• gen.PID -> pid

• gen.Ref -> ref

• gen.Alias -> ref (alias)

• bool -> atom true/false

You can also use the functions etf.TermIntoStruct and etf.TermProplistIntoStruct for decoding data. These functions take into account etf: tags on struct fields, allowing the values to map correctly to the corresponding struct fields when decoding proplist data.

To automatically decode data into a struct, you can register the struct type using etf.RegisterTypeOf. This function takes the object of the type being registered and decoding options etf.RegisterTypeOptions. The options include:

• Name - The name of the registered type. By default it is taken from the reflect package as # followed by the package path and the type name, for example #github.com/myorg/myapp/MyValue

• Strict - Determines whether the data must match the struct. With Strict: false non-matching data is decoded into any. With Strict: true a mismatch panics during decoding - an overflow or a wrong destination type raises it - so do not enable it for input you do not control.

To be automatically decoded the data sent from Erlang must be a tuple, with the first element being an atom whose value matches the type name registered in Golang. For example:

type MyValue struct{
    MyString string
    MyInt    int32
}

...
// register type MyValue with name "myvalue"
etf.RegisterTypeOf(MyValue{}, etf.RegisterTypeOptions{Name: "myvalue", Strict: true})
...

The values sent by an Erlang process should be in the following format:

> erlang:send(Pid, {myvalue, "hello", 123}).

Ergo-node in Erlang-cluster

If you want to use the Erlang network stack by default in your node, you need to specify this in gen.NetworkOptions when starting the node:

import (
    "fmt"

    "ergo.services/ergo"
    "ergo.services/ergo/gen"
    "ergo.services/proto/erlang23/dist"
    "ergo.services/proto/erlang23/epmd"
    "ergo.services/proto/erlang23/handshake"
)

func main() {
    var options gen.NodeOptions

    // set cookie
    options.Network.Cookie = "123"

    // set Erlang Network Stack for this node
    options.Network.Registrar = epmd.Create(epmd.Options{})
    options.Network.Handshake = handshake.Create(handshake.Options{})
    options.Network.Proto = dist.Create(dist.Options{})

    // starting node
    node, err := ergo.StartNode(gen.Atom(OptionNodeName), options)
    if err != nil {
        fmt.Printf("Unable to start node '%s': %s\n", OptionNodeName, err)
        return
    }

    node.Wait()
}

In this case, all outgoing and incoming connections will be handled by the Erlang network stack. For a complete example, see the Erlang step of the tour: an application that Erlang drives through gen_server:call, with the type mapping above put to work in one place.

net_adm:ping says pang

The first thing anyone tries from the Erlang shell is a ping, and it fails on a node that works perfectly:

1> net_adm:ping('ergo@localhost').
pang

A gen_server:call to a process on that same node, typed immediately afterwards, answers normally.

ping does not test the connection. It calls the net_kernel process on the other node with {is_auth, node()} and expects yes; on anything else it runs erlang:disconnect_node and returns pang. An Ergo node has no net_kernel, so nothing answers - and the disconnect is why a connection may appear in the log and go again just before the one you actually use. Judge the link by whether messages arrive, not by ping.

The rest of Erlang's introspection is the same story in reverse: observer:start(), recon and the shell's process listings read structures that only a BEAM node has. An Ergo node is not a BEAM node, and the Observer application does not read an Erlang one either - it inspects nodes through the system application every Ergo node runs, which an Erlang node does not have. Each side keeps its own tools; what crosses between them is messages.

If you want to maintain the ability to accept connections from Ergo nodes while using the Erlang network stack as a main one, you need to add an acceptor in the gen.NetworkOptions settings:

import (
    "fmt"
    "ergo.services/ergo"
    "ergo.services/ergo/gen"

    // Ergo Network Stack
    hs "ergo.services/ergo/net/handshake"
    "ergo.services/ergo/net/proto"
    "ergo.services/ergo/net/registrar"

    // Erlang Network Stack
    "ergo.services/proto/erlang23/dist"
    "ergo.services/proto/erlang23/epmd"
    "ergo.services/proto/erlang23/handshake"
)

func main() {
    ...
    acceptorErlang := gen.AcceptorOptions{}
    acceptorErgo := gen.AcceptorOptions{
        Registrar: registrar.Create(registrar.Options{}),
        Handshake: hs.Create(hs.Options{}),
        Proto:     proto.Create(),
    }
    options.Network.Acceptors = append(options.Network.Acceptors,
                                    acceptorErlang, acceptorErgo)
    // starting node
    node, err := ergo.StartNode(gen.Atom(OptionNodeName), options)

Please note that if the list of acceptors is empty when starting the node, it will launch an acceptor with the network stack using Registrar, Handshake, and Proto from gen.NetworkOptions.

If you set options.Network.Acceptors, you must explicitly define the parameters for all necessary acceptors. In the example, acceptorErlang is created with empty gen.AcceptorOptions (the Erlang stack from gen.NetworkOptions will be used), while for acceptorErgo, the Ergo Framework stack (Registrar, Handshake, and Proto) is explicitly defined.

In this example, you can establish incoming and outgoing connections using the Erlang network stack. However, the Ergo Framework network stack can only be used for incoming connections. To create outgoing network connections using the Ergo Framework stack, you need to configure a static route for a group of nodes by defining a match pattern:

...
// starting node
node, err := ergo.StartNode(gen.Atom(OptionNodeName), options)
// add static route
route := gen.NetworkRoute{
    Resolver: acceptorErgo.Registrar.Resolver(),
}
match := ".ergonodes.local"
if err := node.Network().AddRoute(match, route, 1); err != nil {
    panic(err)
}

For more detailed information, please refer to the Static Routes section.

Erlang-node in Ergo-cluster

If your cluster primarily uses the Ergo Framework network stack by default and you want to enable interaction with Erlang nodes, you'll need to add an acceptor using the Erlang network stack. Additionally, you must define a static route for Erlang nodes using a match pattern:

import (
    "fmt"

    "ergo.services/ergo"
    "ergo.services/ergo/gen"
    "ergo.services/proto/erlang23/dist"
    "ergo.services/proto/erlang23/epmd"
    "ergo.services/proto/erlang23/handshake"
)

func main() {
    var options gen.NodeOptions

    // set cookie
    options.Network.Cookie = "123"

    // add acceptors
    acceptorErgo := gen.AcceptorOptions{}
    acceptorErlang := gen.AcceptorOptions{
        Registrar: epmd.Create(epmd.Options{}),
        Handshake: handshake.Create(handshake.Options{}),
        Proto:     dist.Create(dist.Options{}),
    }
    options.Network.Acceptors = append(options.Network.Acceptors,
                                    acceptorErgo, acceptorErlang)

    // starting node
    node, err := ergo.StartNode(gen.Atom(OptionNodeName), options)
    if err != nil {
        fmt.Printf("Unable to start node '%s': %s\n", OptionNodeName, err)
        return
    }

    // add static route
    route := gen.NetworkRoute{
        Resolver: acceptorErlang.Registrar.Resolver(),
    }
    if err := node.Network().AddRoute(".erlangnodes.local", route, 1); err != nil {
        panic(err)
    }

    node.Wait()
}

Actor GenServer

The erlang23.GenServer actor implements the low-level gen.ProcessBehavior interface, enabling it to handle messages and synchronous requests from processes running on an Erlang node. The following message types are used for communication in Erlang:

• regular messages - sent from Erlang using erlang:send or the Pid ! message syntax

• cast-messages - sent from Erlang with gen_server:cast

• call-requests - from Erlang made with gen_server:call

erlang23.GenServer uses the erlang23.GenServerBehavior interface to interact with your object. This interface defines a set of callback methods for your object, which allow it to handle incoming messages and requests. All methods in this interface are optional, meaning you can choose to implement only the ones relevant to your specific use case:

type GenServerBehavior interface {
	gen.ProcessBehavior

	Init(args ...any) error
	HandleInfo(message any) error
	HandleCast(message any) error
	HandleCall(from gen.PID, ref gen.Ref, request any) (any, error)
	Terminate(reason error)

	HandleEvent(message gen.MessageEvent) error
	HandleInspect(from gen.PID, item ...string) map[string]string
}

The callback method HandleInfo is invoked when an asynchronous message is received from an Erlang process using erlang:send or via the Send* methods of the gen.Process interface. The HandleCast callback method is called when a cast message is sent using gen_server:cast from an Erlang process. Synchronous requests sent with gen_server:call or Call* methods are handled by the HandleCall callback method.

If your actor only needs to handle regular messages from Erlang processes, you can use the standard act.Actor and process asynchronous messages in the HandleMessage callback method.

To start a process based on erlang23.GenServer, create an object embedding erlang23.GenServer and implement a factory function for it.

Example:

import "ergo.services/proto/erlang23"

func factory_MyActor() gen.ProcessBehavior {
    return &MyActor{}
}

type MyActor struct {
    erlang23.GenServer
}

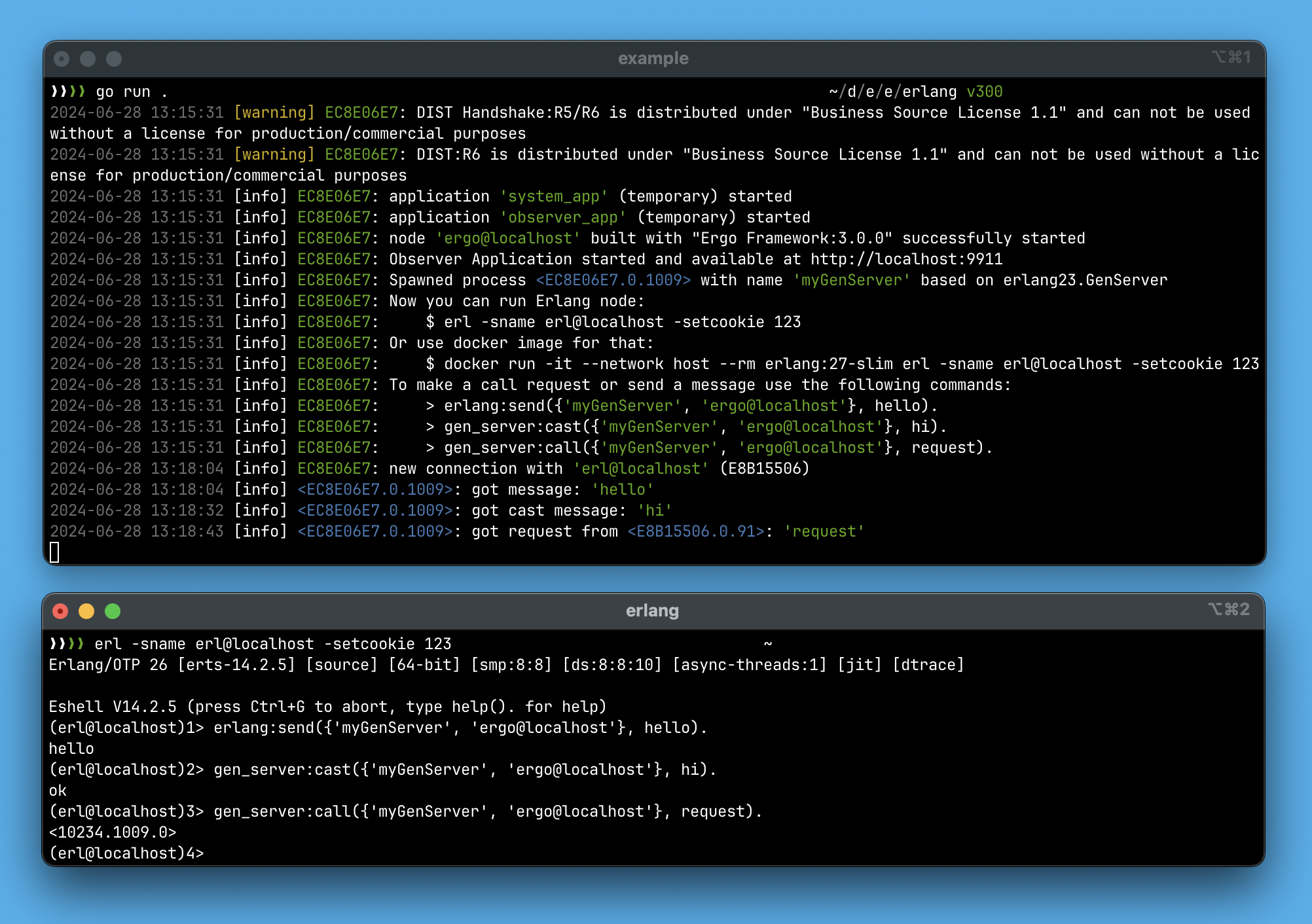

To send a cast message, use the Cast method of erlang23.GenServer.

func (ma *MyActor) HandleInfo(message any) error {
    ...
    ma.Cast(Pid, "cast message")
    return nil
}

To send regular messages, use the Send* methods of the embedded gen.Process interface. Synchronous requests are made using the Call* methods of the gen.Process interface.

Like act.Actor, an actor based on erlang23.GenServer supports the TrapExit functionality to intercept exit signals. Use the SetTrapExit and TrapExit methods of your object to manage this functionality, allowing your process to handle exit signals rather than terminating immediately when receiving them.
